HE-SIS for Agilent ICP-MS (KT-1155)

High Efficiency Sample Introduction System Sample Introduction System for Agilent ICP-MS

Glass Expansion have developed a Single-Cell Sample Introduction System (SC-SIS) for SC-ICP-MS which consists of a:

• High efficiency, low uptake, concentric glass nebulizer designed to efficiently nebulize single-cell suspensions without compromising cell integrity

• Low volume, on-axis, laminar-flow spray chamber directly coupled to the ICP for the highest transport efficiency of the nebulized single-cell suspension

• Patent pending MicroJet gas adapter which entrains and shapes the aerosol plume to reduce cell deposition onto the spray chamber walls and increase sample transport efficiency

• An instrument specific mounting bracket to support and install the SC-SIS Kit, ensuring proper alignment of the laminar flow spray chamber

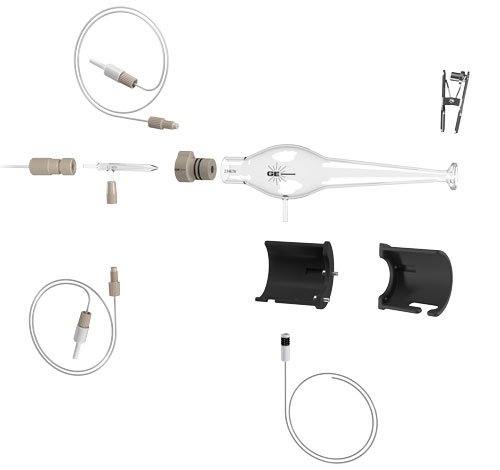

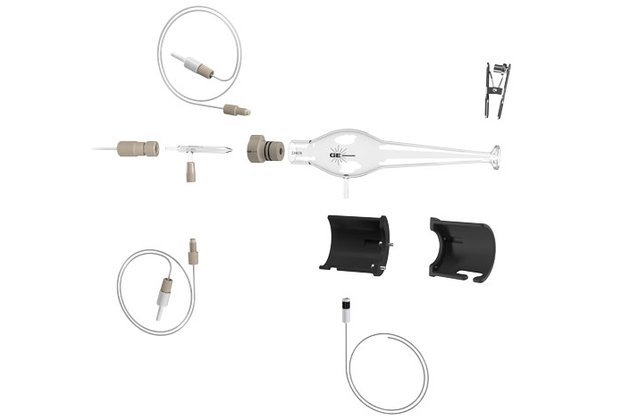

Includes:

JC-13: Metal Ball Joint Clip

21-809-4327: Lotis HE Spray Chamber – Glass

21-809-4328: MicroJet Nebulizer Adaptor

70-803-1105: DC Fitting Type 13/31 with Ratchet Connector

70-803-1499: Mount Assembly

70-803-2009: Screws M3 x 10 (PKT 2)

70-803-2889: Bleed Valve for HE Nebulizers (A13/A31)

70-803-3008: Mount Assembly Agilent 9500 ICP-MS

C13-1-UFT02: MicroMist HE DC Nebulizer 0.2mL/min

UFT-075: UniFit with 1.3mm OD X 0.75mm ID x 700mm long sample tube (1 ks)
